RI-NEAR LINEAR SHAKERS

Roll Industries specializes in providing top-of-the-line solids control equipment tailored for oilfield applications. Among their offerings, their high-performance shakers stand out as a crucial component in effectively separating solids from drilling mud. These shakers are meticulously designed and engineered to ensure maximum efficiency and reliability, meeting the demanding requirements of the oil and gas industry. With Roll Industries' commitment to quality and innovation, their shakers play a pivotal role in optimizing drilling operations by facilitating the removal of solids, thus enhancing overall productivity and performance in oilfield environments.
Roll Industries takes pride in offering a comprehensive range of Near Linear and completely Linear Motion shakers, all engineered to deliver a vibrational force ranging from 6.0 to 7.5 g's, depending on the specific model. These shakers are designed to efficiently separate solids from drilling mud while maintaining a compact equipment footprint.
The impressive screening area of Roll Industries' shale shakers, coupled with the optimal vibrational force and near linear motion, results in exceptional solids conveyance and overall performance. The combination of screening area and G force is recognized as a key determinant of shale shaker performance, and Roll Industries' shakers boast one of the highest ranges in the industry, ensuring excellent separation efficiency, solids conveyance, and extended screen life.
Roll Industries utilizes MVTX Vibrators in their shale shakers, known for their exceptional durability and long-life bearings, which contribute to reduced noise levels. These vibrator motors deliver the desired vibrational force to the shale shaker, enhancing its performance and reliability in demanding oilfield applications.
FEATURES & BENEFITS
  • All linear and Near Linear Motion Shale Shaker come with a range of 6.0 – 7.5 g’s of vibrational force
  • Large screening area on standard units and we can support additional upper screening area to increase screan size
  • Small equipment footprint
  • Durable polyurethane wedge blocks hold screens securely in place
  • Baskets are fully seal welded and stress relieved
  • Seal welded baskets reduce corrosion and increase machine life
  • Two (2) layers of powder coat. Baked-on zinc-rich epoxy 1st layer for corrosion resistance and abrasion resistance final coat
  • Roll industries Shale Shakers are engineered to minimize screen wear
  • Easy screen inspection removal and installation
  • Low weir height
  • Efficient vibration isolation, hence a quiet machine during operation
  • Minimal maintenance with few spares parts required

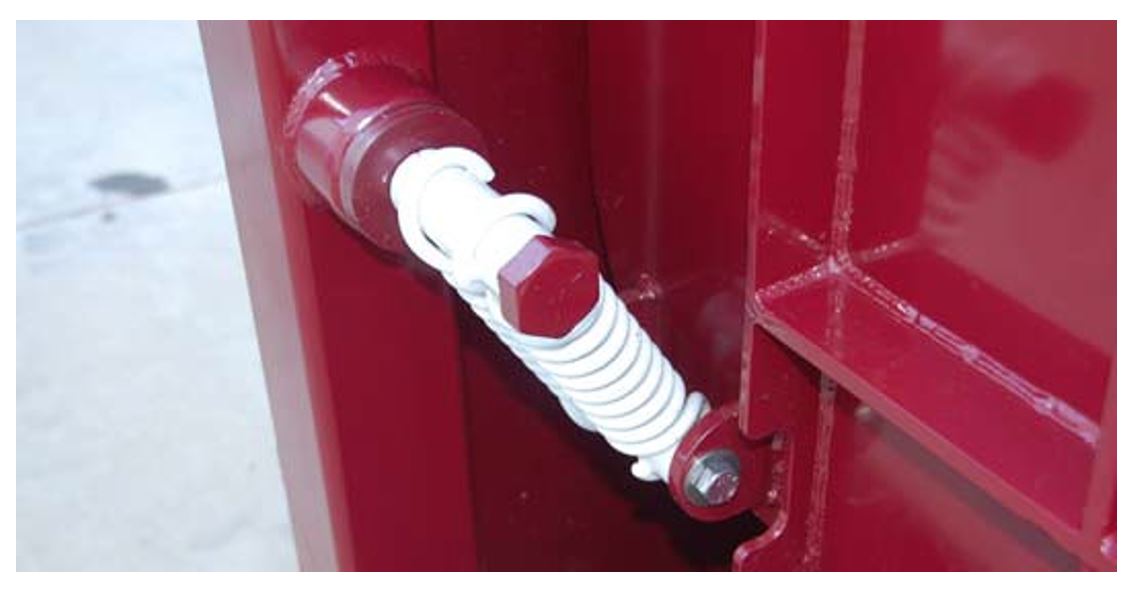

VIBRATION ISOLATION
Stainless steel spring isolators provide superior vibration isolation and corrosion resistance. The Shaker basket is hung from the spring and the springs are constantly in tension which gives superior isolation while allowing for superior vibration transmission throughout the basket with no vibration dampening.

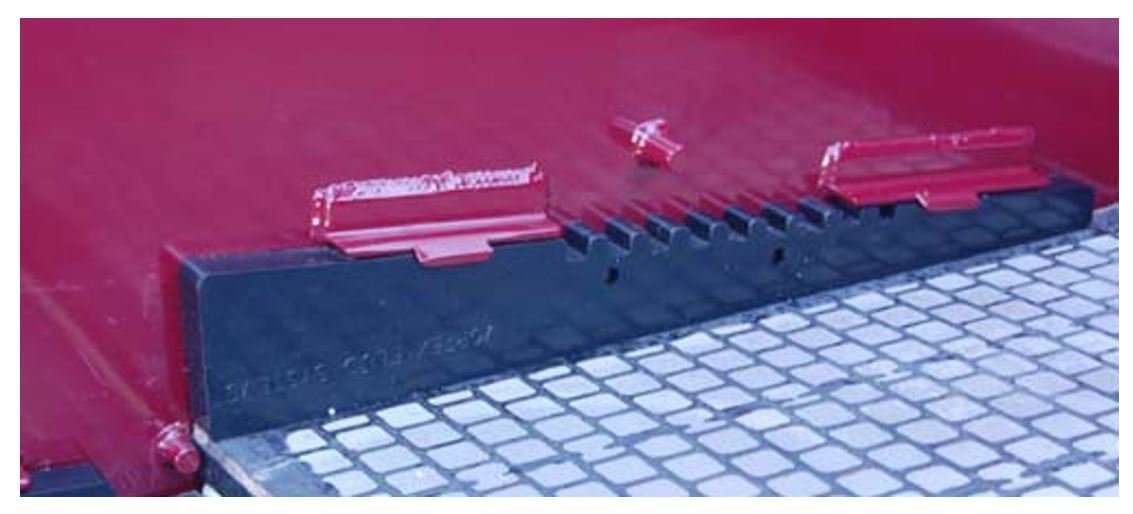

WEDGEBLOCK
Durable polyurethane wedge blocks hold screens securely in place. Wedgeblock fasteners produce easier and better tightening of wedge blocks against the screen hence ensuring screens remain tight independent of wear.
DURABILITY
All baskets are fully seal welded and stress relieved which not only improves vibration transmission to the screen but also reduces corrosion, adding years to the machine’s life.
CORROSION PROTECTION
The Roll Industries RI-NL-4P Shale has two layers of powder coat. The first coat is baked-on Zinc-rich epoxy which provides corrosion resistance. The final coat provides abrasion resistance.

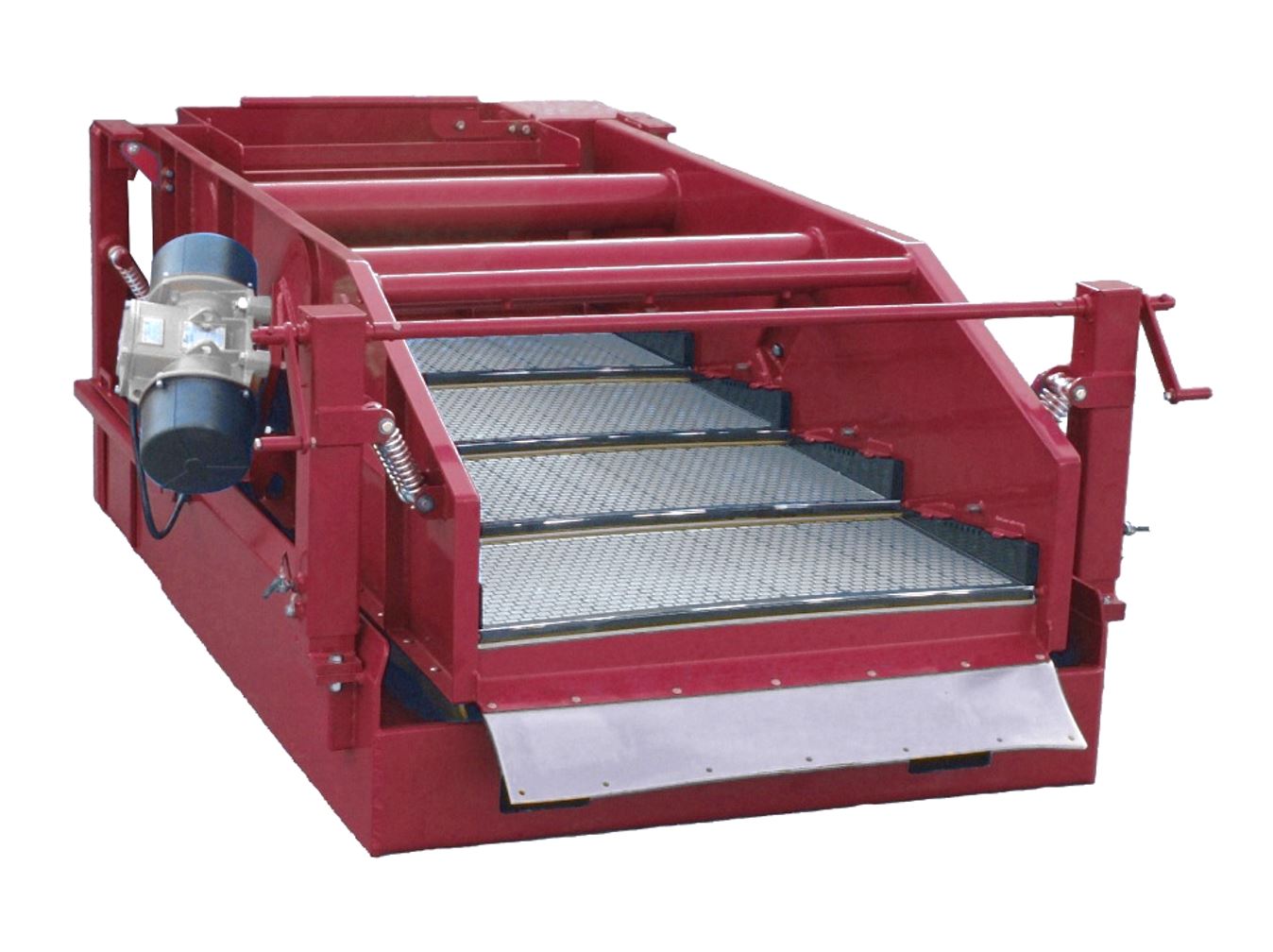

RI-NL-4PNear Linear 4 Panel Shale Shaker

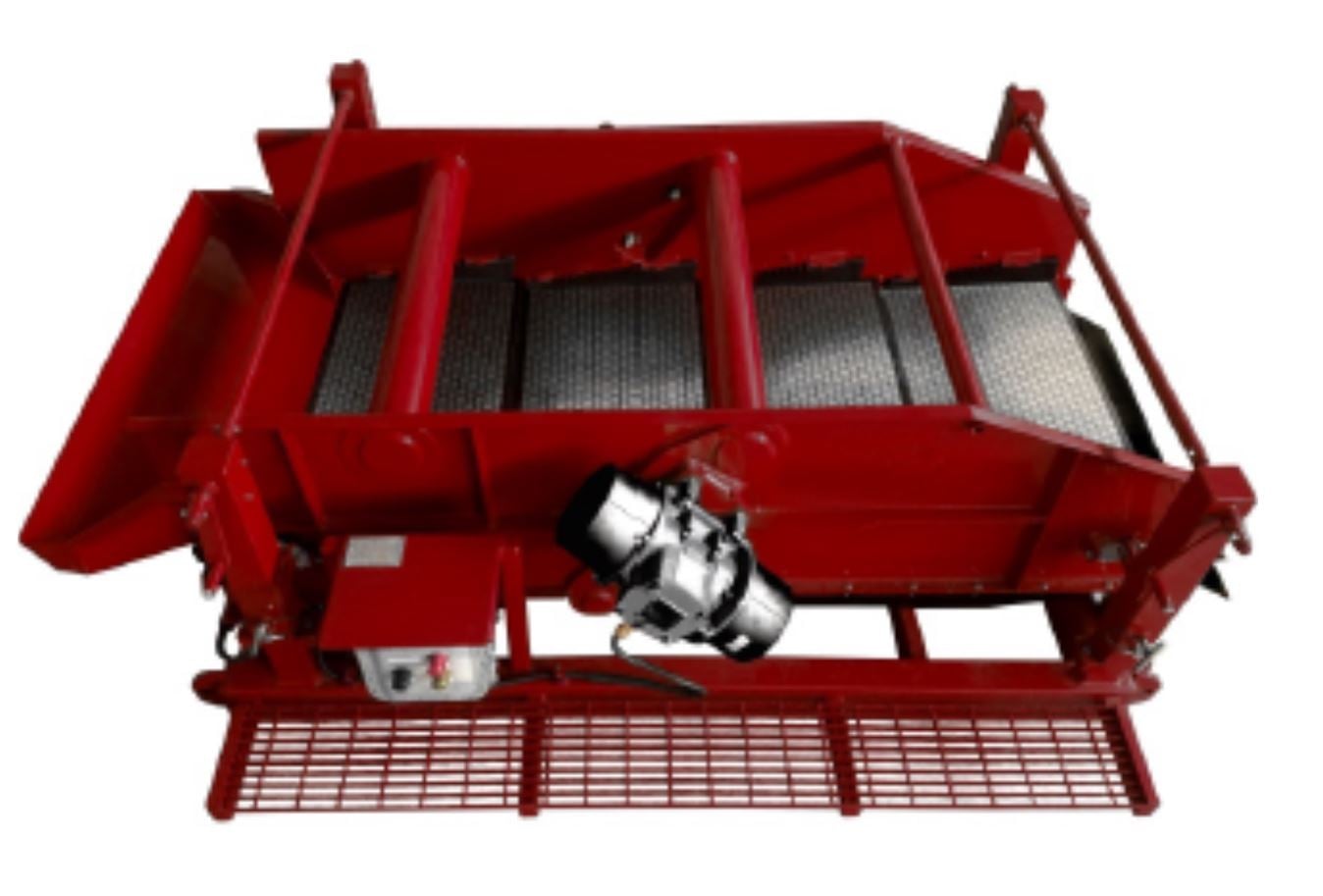

RI-NLD-4PNear Linear 4 Panel Drying Shaker

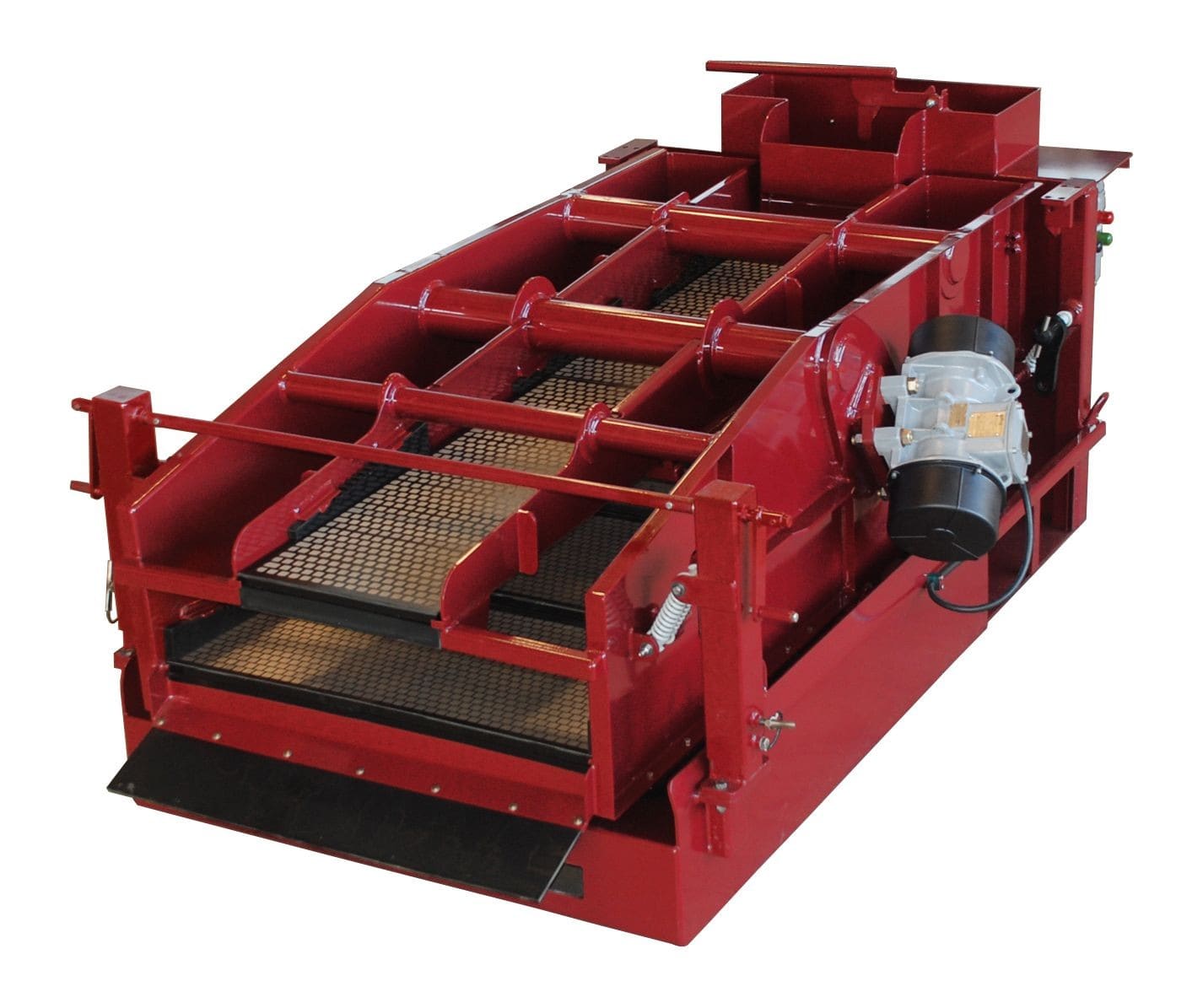

RI-NL-DD-4Near Linear 4 Panel Duel Deck Shale Shaker

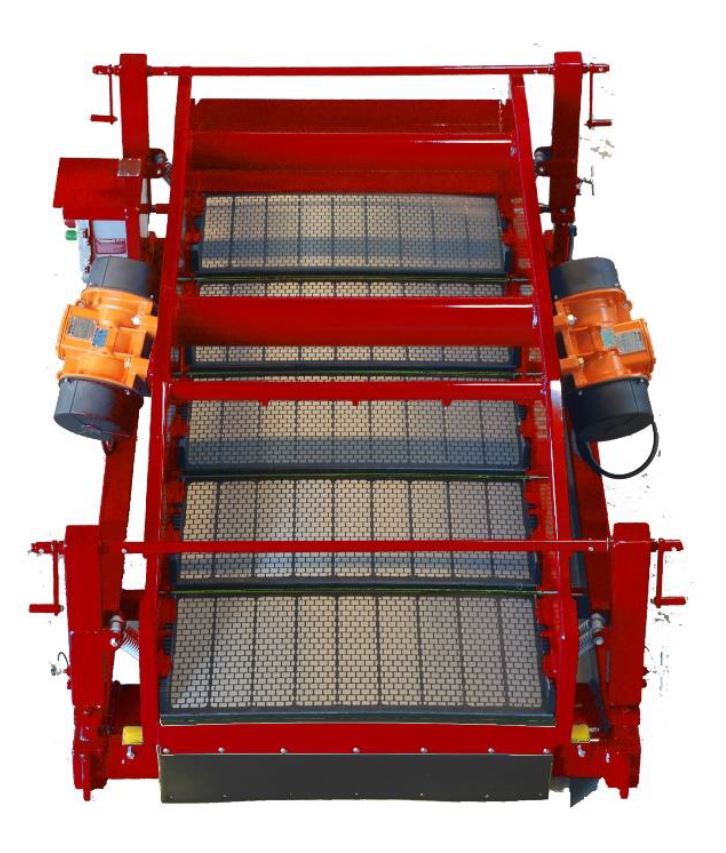

RI-NL-5PNear Linear 4 Panel Shale Shaker
